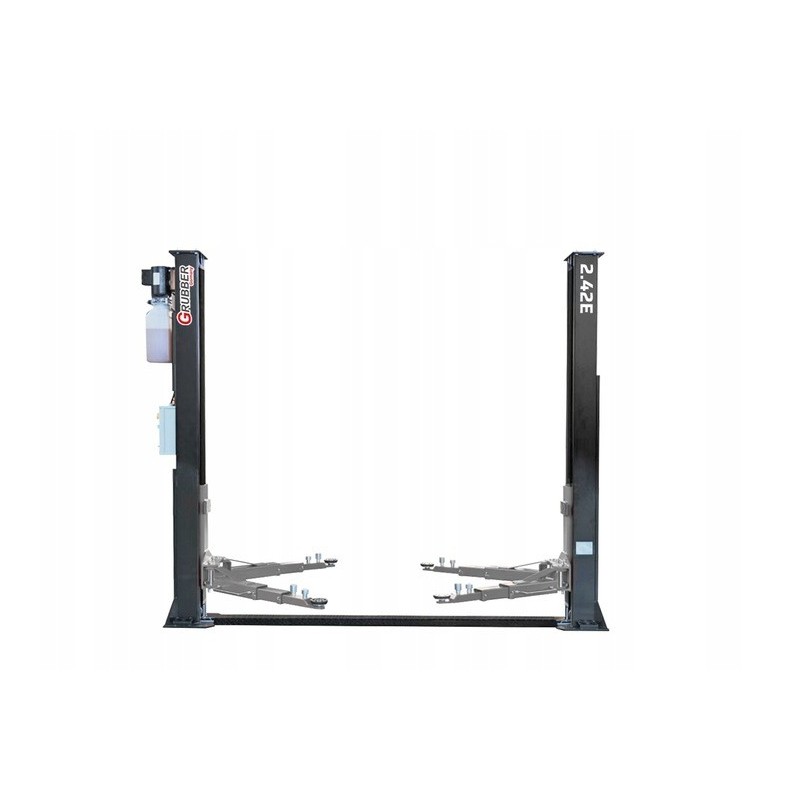

Two column lift 4.2 T Automatic 155 cm 400V Grubber

Charakterystyka:

Two column hydraulic lift Grubber 2.42E 4200 kg | 400V

Professional electrohydraulic double column lift with increased load capacity of 4200 kg. Designed for intensive operation in modern car workshops and services serving passenger vehicles, heavy SUVs and vans. The Grubber 2.42E design is based on proven technical solutions, ensuring stability, high comfort and full safety of daily work.

Advanced Arm Structure

The lift is distinguished by the asymmetrical foot construction, which facilitates getting in and out of the vehicle, allows precise support at construction points and increases the comfort of the mechanic.

Arm configuration:

• Front arms: 2-part range 717-1070 mm.

• Rear arms: 3-piece range 820-1550 mm.

Multitasking: The use of arms with such diverse structure and a wide range of adjustment ensures maximum versatility when handling vehicles with different axle spacing – from small urban cars to long buses.

Technical data

Safety and Automation

• Automatic release of locks (Electromagnets): Unlike semi-automatic versions, this model has fully automatic operation from the control box level. Clicking the exit button automatically slows down security issues.

• No need to pull up: This function allows you to immediately leave the trolleys without the need for an earlier, burdensome lift of the vehicle to unlock the bolts.

• Mechanical synchronisation: Advanced link system guarantees perfectly equal lifting of both trucks regardless of the distribution of the vehicle weight.

• Complete security: Automatic height lock, automatic arm rotation lock and adjustable height adapters increasing the chassis support point.

Key benefits:

• Fleet universality: The capacity of 4.2 tons can handle the heaviest passenger cars and utility vehicles.

• Speed and convenience: The full automation of the control and the lack of manual pull behind the links on both columns dramatically accelerates the rotation of the station cars in the workshop.

• Work Culture: Low noise (<70 dB) significantly improves environmental conditions in the service hall.
