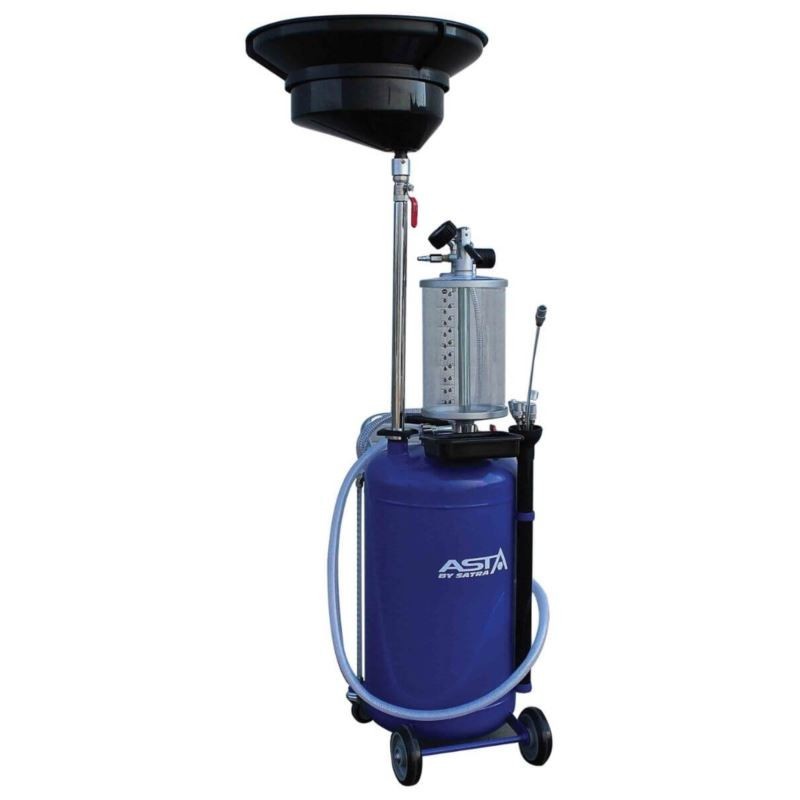

AODE290E oil filler with transparent chamber

High-performance AODE290E oil filler with tank capacity of 90 litres is a mobile workshop equipment designed for intensive use in automotive and mechanical services.

The device combines the advantages of vacuum fluid suction using the Venturi valve with the function of gravitational pouring spent oil from engines, gearboxes and drive bridges. Equipment in a transparent (inspective) control chamber with a capacity of 8 litres allows for the current assessment of the quality and quantity of oil released before entering the main tank. The larger capacity of the tank (90 l) enables the operation of many vehicles without the need for frequent emptying.

Key features and advantages of the product:

• Large capacity (90 l): It allows to collect up to 70 liters of used oil, which significantly increases the efficiency of work in large workshops.

• Transparent inspection chamber (8 l): It allows careful inspection and visual inspection of the quality of the oil worked (detection of saw blades, water or accumulated impurities).

• Complete set of probes and adapters: The set includes 6 suction probes (flexible and metal) with quick couplings and adapters dedicated to BMW and Volkswagen vehicles.

• Quick, self-emption: The compressed air connection (max 1 bar) allows for easy and clean pumping of the collected oil into the external aggregate tank.

• Wide range of regulation: The height adjustment of the bowl in the range of 1100 to 1800 mm allows the lift to be adjusted to channel stations and high column lifts.

Application:

• Vacuum suction of motor oil and gear fluid through a baguette socket

• Gravity oil discharge from engines, gearboxes and differentials

• Service of passenger cars, vans, trucks and agricultural tractors

Specifications & Technical Parameters:

• Model: AODE290E

• Main tank capacity: 90 l

• Control chamber capacity: 8 l

• Maximum volume of liquid in tank: 60-70 l

• Collection bowl capacity: 18 l

• Collector bowl diameter: 400 mm (with zoom ring: 606 mm)

• Bowl height range: 1100 – 1800 mm

• Pressure for vacuum: 7-8 bar

• Vacuum production time: 150–180 s

• Suction efficiency: 1,5 – 2 l/min

• Length of suction / discharge line: 2000 mm / 2000 mm

• Tank emptying pressure: max 1 bar

• Air connection: 1/4" (fast coupling) / 1/4" NPT

• Invented weight: 43 kg

• Additional equipment: 6 suction probes, BMW and VW adapters, transparent control chamber
