Kątomierz do klucza dynamometrycznego 1/2

Charakterystyka:

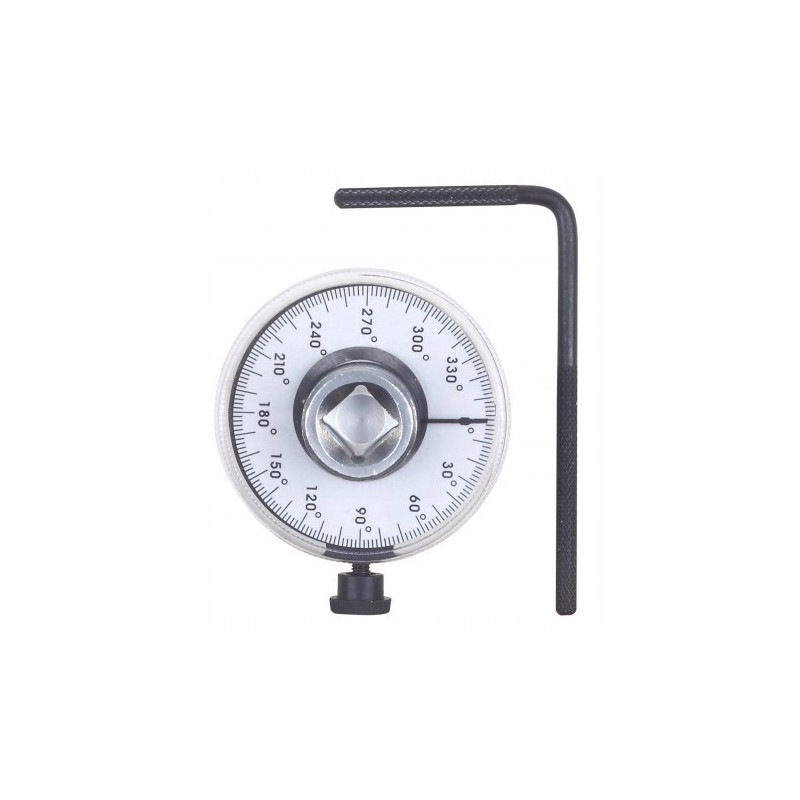

Angometer for 1/2" dynamometer Magnus MGS01108

Precision Magnus dynamometer 1/2" (model: MGS01108) is a specialized measuring instrument designed for the angular tightening of screws and nuts with strict technological parameters of the manufacturer.

The tool is irreplaceable during the screw-screw procedures of the engine head, flywheels, crankbags or suspension elements, where the standard torque measurement in Nm is insufficient and controlled angle rotation is required. Robust chrome vanadium steel (Cr-V) protected with durable plastic housing guarantees resistance to difficult workshop conditions.

Key features and advantages of the product:

• Readable measurement scale (0-360°): The scale scale scaled every 2° allows an extremely precise optical reading of the screw angle.

• Universal 1/2" drive: The 1/2" square dimension (entry and output) allows easy cooperation with any dynamometer key, rattle and workshop adapters.

• Lock arm (flexible gripper): The built-in block with a flexible arm allows for a certain backrest of the angometer with adjacent engine components, preventing the disc from turning while tightening.

• Material durability: The pin and knob made of high-quality chrome-vanadium steel (Cr-V) provide a twist resistance.

Application:

• Screwing of cylinder heads in combustion engines

• Installation of flywheel screws, crankshafts and crankblade feet (panels)

• Screw tightening requiring two-stage tightening (preliminary point) Nm + angle in degrees °)

• Advanced work in mechanical and mechanical services

Specifications & Technical Parameters:

• Model: MGS01108

• Manufacturer: Magnus

• Measurement range: 0° – 360° (2°)

• Drive (square): 1/2" (entry/exit)

• Material: chrome vanadium steel (Cr-V) + plastic cover

• Includes: angular shield, locking arm with back foot
