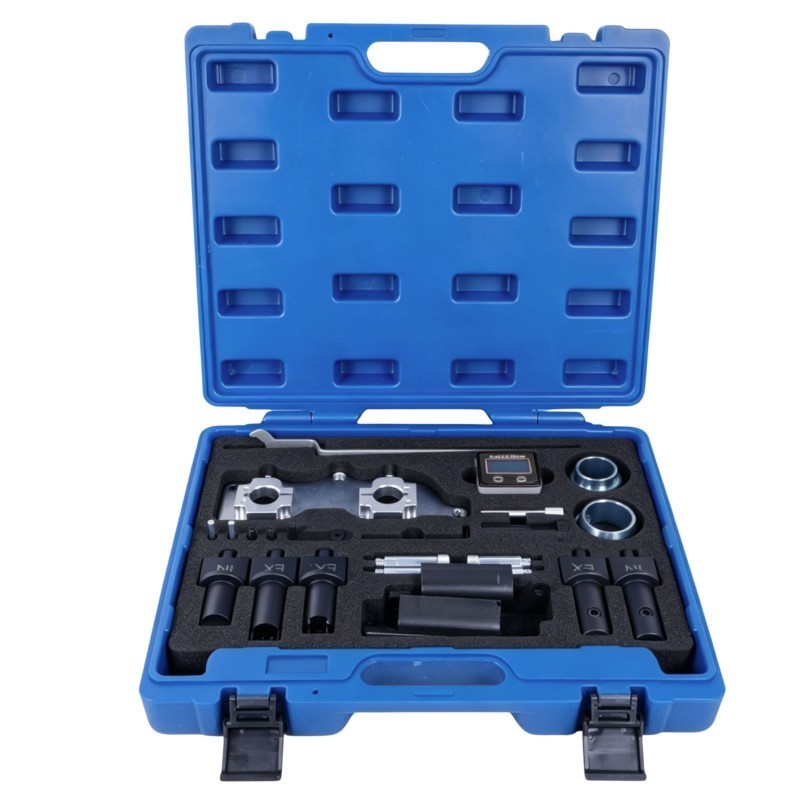

VAG 1.5 extended TSI timing lock

Charakterystyka:

Professional set of VAG 1.4 and 1.5 TSIs EA211 EVO

Expanded timing set designed for professional service of modern petrol engines from the VAG group (Volkswagen, Audi, Skoda, Seat, Cupra). The specialist set of cams of timing phases dedicated to new generation units EA211 EVO (produced from 2017) capacity 1.5 TSIand thanks to additional modules also supports popular engines 1.4 TSI.

The apparatus has been fully adapted to operate high-tech drive units equipped with Active cylinder disconnection system (ACT / CoD). Allows flawless and safe bar replacement and regulation of the timing mechanism according to the factory specification.

Application in the car workshop – compatibility with models

Presented timing locking device supports a wide range of VAG vehicles.

Engines 1.5 EA211 EVO TSI (since 2017) with ACT system:

• Audi: A1 (since 2018), A3 (since 2017), Q2 (since 2018), Q3 (since 2018)

• Volkswagen: Golf VII / VIII (since 2017), Passat (from 2018), Polo (2017–2020), Arteon (2018–2020)

• Skoda: Octavia III / IV (since 2017), Scala (since 2019), Kamiq (since 2019), Karoq (since 2017), Kodiaq (since 2019), Superb III (2017–2020)

• Seat: Ibiza (2017–2020), Arona (2017–2020), Ateca (since 2018), Taraco (since 2019)

• Cupra: Leon (since 2022), Formentor (since 2020), Ateca (since 2023)

• Engine codes 1.5L: DACA, DACB, DADA, DFYA, DHFA, DPCA, DPBE



Engines 1.4 TSI/TFSI (2012-2021) – EX extended element:

• Audi: A1 (2012), A3 (2012), Q2 (2016), Q3 (2015)

• Volkswagen: Golf VII (2012–2017), Polo (2012–2014), Tiguan (2017–2018)

• Skoda: Karoq (2020–2020), Kodiaq (2017–2020)

• Engine codes 1.4L: CPTA, CZDB, CZEA (technology: TFSi CoD, TSi ACT, TFSi, BlueGT TSi ACT)

Precision and functionality of measuring tools

The main asset of this timing shaft locking is presence inclinometer. Modern engines EA211 EVO require extremely accurate, angular positioning of the camshaft relative to the crankshaft. The attached instrumentation allows for simultaneous immobilization of the belt wheels and precise verification of the settings, which eliminates the risk of shifting the timing phases and errors of the on-board computer after installation.

Package content and OEM numbers

Tools are direct replacement service tools with numbers OEM: VAS 611 007 / T10504 / T10499 / T10340. The case contains:

• A – Cam lid locking adapter

• B – Guides and mounting screws

• C – Roll lock (EA211 EVO)

• D – The gear shaft shift

• E – Intake shaft adapter

• F – Timeshaft adapter

• G – Inclinometer reference bar (EA211 EVO 1.5)

• H – Fixing screws

• I – Inclinometer for setting the timing shaft angle

• J – Cross bar pin (rear timing lock — T10504/1)

• K – Crankshaft bolt (T10340)

• L – Lever attachments (2 pcs)

• M – Belt wheel setting tool (T10499)

• EX – Additional expansion module for engines 1.4 CoD/ACT TSIs


Technical specifications and parameters

• Purpose: Gasoline engines 1.4 / 1.5 TSI / TFSI VAG

• Engine type: 4-cylinder, family EA211 EVO and older generations

• Supported systems: ACT (Active Cylinder Technology) and CoD (Cylinder on Demand)

• OEM Service Numbers: VAS 611007, T10504, T10499, T10340, T10504/1

• Material: Reinforced tool steel / tempered / oxidized

• Packaging: Manual and profiled plastic case facilitating transport
